Braided PTFE Hose
10000 Square Meters industrial zone. 8 years of PTFE manufacturing experience, Braided PTFE hose come in I.D. sizes from 1/8" to 1" and size an3 to an10.
Glad our product is trusted by customers above
Bulk pricing Braided PTFE Hoses from Suniu Manufacturer
We are a leading PTFE hose supplier operating in our 10,000 M2 industrial park. We specialize in producing different types of braided hoses.These hoses come in I.D. sizes from 1/8" to 1", with the provision of customized solutions to meet your specific needs.
1. 8 Years manufacturing experience
2. 10000 Square Meters Industrial Zone
3. Meet or Exceed SAE J517 100R14
4. 100% Leakage Test each inch hose
5. PTFE Hose Crystallization Controlling, Check Benefits

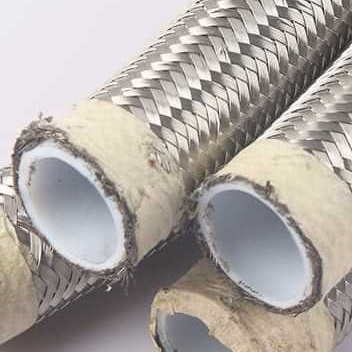

Smoothbore PTFE hose with steel braided
Meet or Exceed SAE J517 100 R14 Standard ptfe hose supplied by Suniu Factory. It features an inner core of ptfe tubing renforced by 304 stainless steel for strength and protection. Smooth bore PTFE braided line specifications:
| Size | Dash Size | I.D. (mm) | O.D. (mm) | |||
| mm | inch | min | max | min | max | |
| 3.2 | 1/8 | -2 | 2.8 | 3.8 | 5.3 | 6.8 |
| 5 | 3/16 | -3 | 4.4 | 5.2 | 7.1 | 8.2 |
| 6.3 | 1/4 | -4 | 6.0 | 6.9 | 8.9 | 10.1 |
| 8 | 5/16 | -5 | 7.5 | 8.4 | 10.4 | 11.6 |
| 10 | 3/8 | -6 | 9.1 | 10 | 12.2 | 13.4 |
| 11 | 7/16 | -7 | 9.9 | 10.9 | 12.9 | 14.3 |
| 12.5 | 1/2 | -8 | 12.3 | 13.3 | 15.3 | 16.8 |
| 16 | 5/8 | -10 | 15.3 | 16.5 | 18.6 | 20.1 |
PTFE AN Hose（PTFE lined tubing+304 S/S）sizes
PTFE AN Hose , developed by the U.S. military, is a flexible hose primarily used in high-performance automotive and aeronautical applications. It is made from PTFE, providing excellent chemical resistance and temperature tolerance. The pipe also features a protective outer layer of stainless steel.
| AN Size | Inner Dia. | Outer Dia. | Item Code | ||
| mm | inch | mm | inch | ||
| 3an | 3.56 | 0.14 | 6.35 | 0.25 | ANHOSE1 |
| 4an | 4.83 | 0.19 | 7.88 | 0.31 | ANHOSE2 |
| 6an | 8.13 | 0.32 | 10.67 | 0.42 | ANHOSE3 |
| 8an | 10.67 | 0.42 | 13.72 | 0.54 | ANHOSE4 |
| 10an | 12.7 | 0.5 | 15.75 | 0.62 | ANHOSE5 |
PTFE Nylon braided Hose(PTFE tubing+304 S/S braided+Nylon braiding)
Nylon braided PTFE S/S hose is a flexible PTFE hose with a resilient nylon outer cover, suitable for high-demand automotive application due to its chemical resistance and temperature tolerance.
| AN Size | Inner Dia. | Outer Dia. | Item Cose | ||
| mm | inch | mm | inch | ||
| 3an | 3.56 | 0.14 | 7.11 | 0.28 | Nylon1 |
| 4an | 4.83 | 0.19 | 8.64 | 0.34 | Nylon2 |
| 6an | 8.13 | 0.32 | 11.68 | 0.46 | Nylon3 |
| 8an | 10.67 | 0.42 | 14.49 | 0.57 | Nylon4 |
| 10an | 12.7 | 0.5 | 16.76 | 0.66 | Nylon5 |
Rubber Cover PTFE Braided Hose
The Rubber Cover PTFE S/S Hose is a versatile, strong line with a PTFE core, stainless steel braiding, and an external layer available in PVC, silicone, or PE. Known for its durability, resistance to chemicals, and thermal endurance, it is widely utilized across various industries.
| AN Size | Inner Dia. | Outer Dia. | Item Code | ||
| mm | inch | mm | inch | ||
| 3an | 3.56 | 0.14 | 7.5 | 0.28 | RUBBER1 |
| 4an | 4.83 | 0.19 | 9 | 0.34 | RUBBER2 |
| 6an | 8.13 | 0.32 | 12 | 0.46 | RUBBER3 |
| 8an | 10.67 | 0.42 | 14.8 | 0.57 | RUBBER4 |
Post-sintered Teflon Hose with Steel Briaided
Post-sintered re-bakes the PTFE tube material at a controlled time and temperature, increasing the wall thickness and tightening the molecular bond, which dramatically reduces effusion rate.Post-sintered PTFE hose has a lowest effusion rate, is highly flexible, has a more durable inner core, and has a long lifespan with minimal maintenance required.
| SIZE | Dash Size | I.D. (mm) | O.D. (mm) | |||
| mm | inch | min | max | min | max | |
| 3.2 | 1/8 | -2 | 2.8 | 3.8 | 5.3 | 6.8 |
| 5 | 3/16 | -3 | 4.4 | 5.2 | 7.1 | 8.2 |
| 6.3 | 1/4 | -4 | 6.0 | 6.9 | 8.9 | 10.1 |
| 8 | 5/16 | -5 | 7.5 | 8.4 | 10.4 | 11.6 |
| 10 | 3/8 | -6 | 9.1 | 10 | 12.2 | 13.4 |
| 11 | 7/16 | -7 | 9.9 | 10.9 | 12.9 | 14.3 |
PTFE lined Hoses Testmonials
"We've been relying on Suniu for our PTFE lined hoses needs for years now. Their bulk pricing is fantastic, and the ptfe fuel line is top-notch" ------John Stone,Modified car & moterbilke.
"We've been using PTFE smooth bore hoses from Suniu in our heat transfer equipment for a while now. Their productss have shown superior performance in managing precise temperature controls for our molding machines. Apart from their exceptional heat resistance, their piping offer great flexibility and durability, making them a cost-effective choice" ------ Tom, supervisor of Heat transfer equipment inc
"Our operations require pipes that offer flexibility and kink resistance, and that's what Suniu's PTFE chemical hoses provide. They have demonstrated superior performance in our chemical transfer operations and high-temperature hydraulics. Plus, they come at a competitive price point which aligns with our budget" ----- Bill, Chemical transfer inc
PTFE Lined Hose assemblies Advantages:
1. Temperature Tolerance: Effective from -65°F to +450°F.
2. Chemical Resistance: Inert to a wide array of chemicals and solvents.
3. Flexibility: Resilient against flexing, vibration, and impulse.
4. Moisture Resistance: Not affected by moisture and easy to clean.
5. Non-Contamination: Maintains the quality of the conveyed substances.
6. Flow Rates: Anti-stick with low pressure drop ensures smooth flow.
7. Durability: Non-aging and unimpacted by weather for longevity
